Grounding transformers play a crucial role in electrical systems. They ensure safety and improve power quality. But why do we use grounding transformers? Let’s explore the reasons in detail.
Why Do We Need Grounding Transformers?
Grounding transformers are needed for several reasons. Here are the main reasons:
- 1. Safety
- 2. Limiting Fault Currents
- 3. Stabilizing System Voltage
- 4. Preventing Overvoltages
What is a Grounding Transformer?
A grounding transformer is a special type of transformer. It is used to create a neutral point in a power system. This neutral point helps in grounding the electrical system. Grounding transformers are essential in systems where a neutral point is missing.
Functions of Grounding Transformers
Grounding transformers have several important functions. Here are some key functions:
- Creating a Neutral Point: They provide a neutral point for grounding.
- Limiting Fault Currents: They limit the fault currents in case of ground faults.
- Stabilizing Voltage: They help in stabilizing the system voltage.
- Ensuring Safety: They enhance the safety of the electrical system.
Types of Grounding Transformers
There are different types of grounding transformers. Each type has its own applications and benefits. Here are the main types:
| Type | Description | Applications |
|---|---|---|

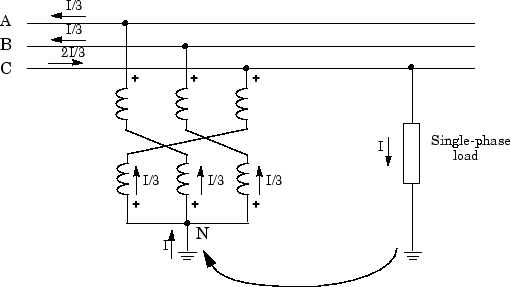

| Zigzag Transformer | Has windings connected in a zigzag pattern. Provides a neutral point and limits fault currents. | Used in industrial and commercial power systems. |
| Wye-Delta Transformer | Has primary winding in wye configuration and secondary winding in delta configuration. Provides a neutral point and limits fault currents. | Used in power distribution and transmission systems. |
| Delta-Wye Transformer | Has primary winding in delta configuration and secondary winding in wye configuration. Provides a neutral point and limits fault currents. | Used in power generation and distribution systems. |
Credit: en.wikipedia.org
Applications of Grounding Transformers
Grounding transformers are used in various applications. Here are some common applications:
- Power Distribution Systems: They provide a neutral point for grounding in distribution systems.
- Industrial Power Systems: They enhance safety and reliability in industrial systems.
- Commercial Buildings: They ensure safe and stable power supply in commercial buildings.
- Renewable Energy Systems: They provide grounding in solar and wind power systems.
- Transmission Systems: They stabilize voltage and limit fault currents in transmission systems.
Benefits of Grounding Transformers
Grounding transformers offer several benefits. Here are the key benefits:
1. Enhanced Safety
Grounding transformers enhance the safety of electrical systems. They provide a safe path for fault currents. This reduces the risk of electrical shocks and fires.
2. Improved Power Quality
They help in stabilizing the system voltage. This improves the overall power quality. Stable voltage ensures the smooth operation of equipment.
3. Reduced Equipment Damage
They limit the fault currents in case of ground faults. This reduces the damage to electrical equipment. It also reduces maintenance and repair costs.
4. Prevention Of Overvoltages
Grounding transformers help in preventing overvoltages. This protects the electrical system from damage.
5. Compliance With Standards
They help in meeting safety and performance standards. This ensures the reliability and safety of the electrical system.
Frequently Asked Questions
What Is A Grounding Transformer?
A grounding transformer provides a ground path for ungrounded systems, improving system stability and safety.
Why Use A Grounding Transformer?
Grounding transformers help protect electrical systems from fault currents and stabilize voltage during unbalanced conditions.
How Does A Grounding Transformer Work?
A grounding transformer connects to the electrical system and provides a low-impedance path to ground fault currents.
Benefits Of A Grounding Transformer?
Grounding transformers enhance safety, protect equipment, and improve system reliability by managing fault currents effectively.
